Owerview

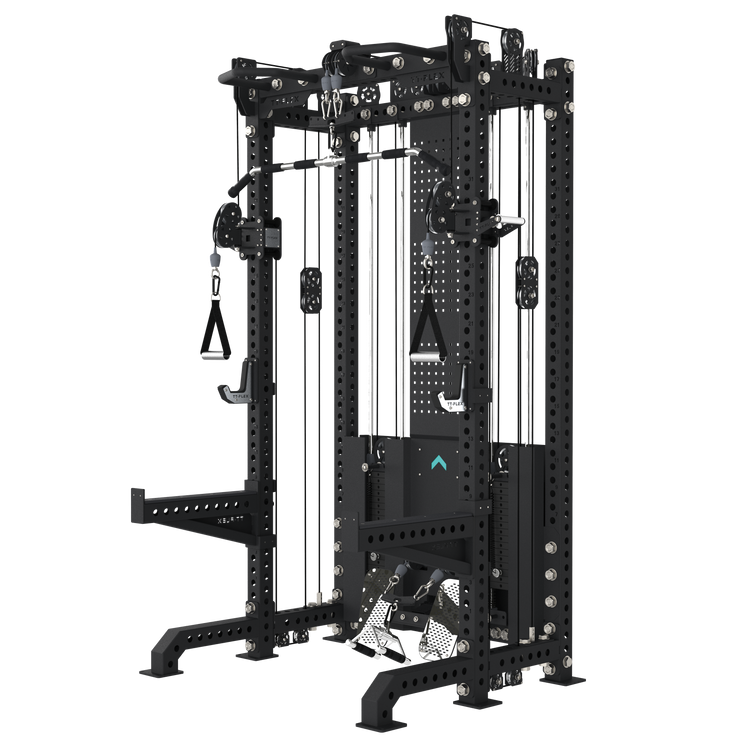

The Premium 2-in-1 Multi-Functional Trainer is our flagship power rack system, engineered to meet the rigorous demands of both home gym enthusiasts and light commercial facilities.
Built to industrial-grade standards, this unit combines a power rack, functional trainer, and pull-up station into a single, space-saving footprint. It is designed for durability, safety, and versatility, supporting a full range of strength training movements from heavy compound lifts to targeted cable exercises.
| Specifications |
Details |
| Upright Size |
75x75mm heavy-duty square uprights |
| Thickness |
3.0mm raw steel wall thickness (3.3-3.5mm after powder coating) |
| Material |
Aviation-grade Q235 carbon steel |
| Finish |
Default Color: Matte Black. Custom colors are available.
|
| Dimensions |
1290x1095x2388mm
|
| Product Weight |
420kg
|
| Weight Stack |
70 kg per side. Customizable. Maximum load up to 120 kg per side.
|
This robust construction ensures exceptional stability under heavy loads, eliminating frame flex during squats, bench presses, and overhead lifts.
Pulley System
• Pulley Ratio:
- the upper and lower pulley system adopts a 1:1 ratio;
- the left and right functional sliding pulleys adopt a 2:1 ratio.
• Pulley Wheels: Aluminum Pulley
Concentric rotation for quieter operation, 115mm diameter pulley for smoother, longer-lasting performance, Integrated adjustable pull pin holes with added resistance band hooks, Modular head assembly connection for more options and no rope twisting
• Cables: Nylon Rope; Material: PA16, Diameter: 4mm; 7 Strands, 18 Threads; Higher Plasticity, Non-Stiff
• Optical Axis Solid and wear-resistant, extending equipment lifespan, ultra-low friction transmission for smoother movement, withstands high load impacts to ensure structural safety
• Guide Rod: Solid guide rod with absolute rigidity for enhanced safety and precision
CNC precision-machined for perfect smoothness and increased durability
• Cable Attachments: Compatible with all standard accessories, including lat pulldown bars, tricep ropes, row handles, and ankle cuffs.
• High-Steel Weight Plates: Standard configuration: 70KG per side (customizable)
12-sided CNC chamfered edges for a premium finish
Dimensional tolerance: ±2mm; weight tolerance: ±1%
Standard Accessories Included with the Rack
◦ Multi-grip pull-up bar
◦ Adjustable safety spotter arms
◦ Heavy-duty J-hooks
◦ Lat pulldown & low row handles
◦ Pegboard
◦ Stainless Steel Footplate
◦ Weight Plate Guard
◦ 2kg Free Weight Block
◦ Aluminum Handle
Customization Options
DM : https://wa.me/8618851014104
The Premium Series is fully customizable to meet your unique needs:
• Color Matching
• Logo Branding
• Accessory Packages
• Height Modifications: Custom upright heights available upon request
Training Capabilities
The Premium Series supports a comprehensive full-body workout, including but not limited to:
• Compound Lifts: Back squats, front squats, bench press, overhead press, deadlifts, and pull-ups
• Cable Exercises: Lat pulldowns, seated cable rows, chest flys, tricep pushdowns, face pulls, and cable crossovers
• Functional Training: Landmine presses, jammer arm presses, core rotations, and hip thrusts
• Accessory Work: Bicep curls, tricep extensions, lateral raises, and more
Installation & Support
• Assembly: The unit comes with detailed, step-by-step installation manuals, hardware bags, and video guides.
• After-Sales Service: We provide a 5-year warranty.
• Shipping: Global door-to-door delivery is available. Contact us with your address and postal code for a customized shipping quote
