Owerview

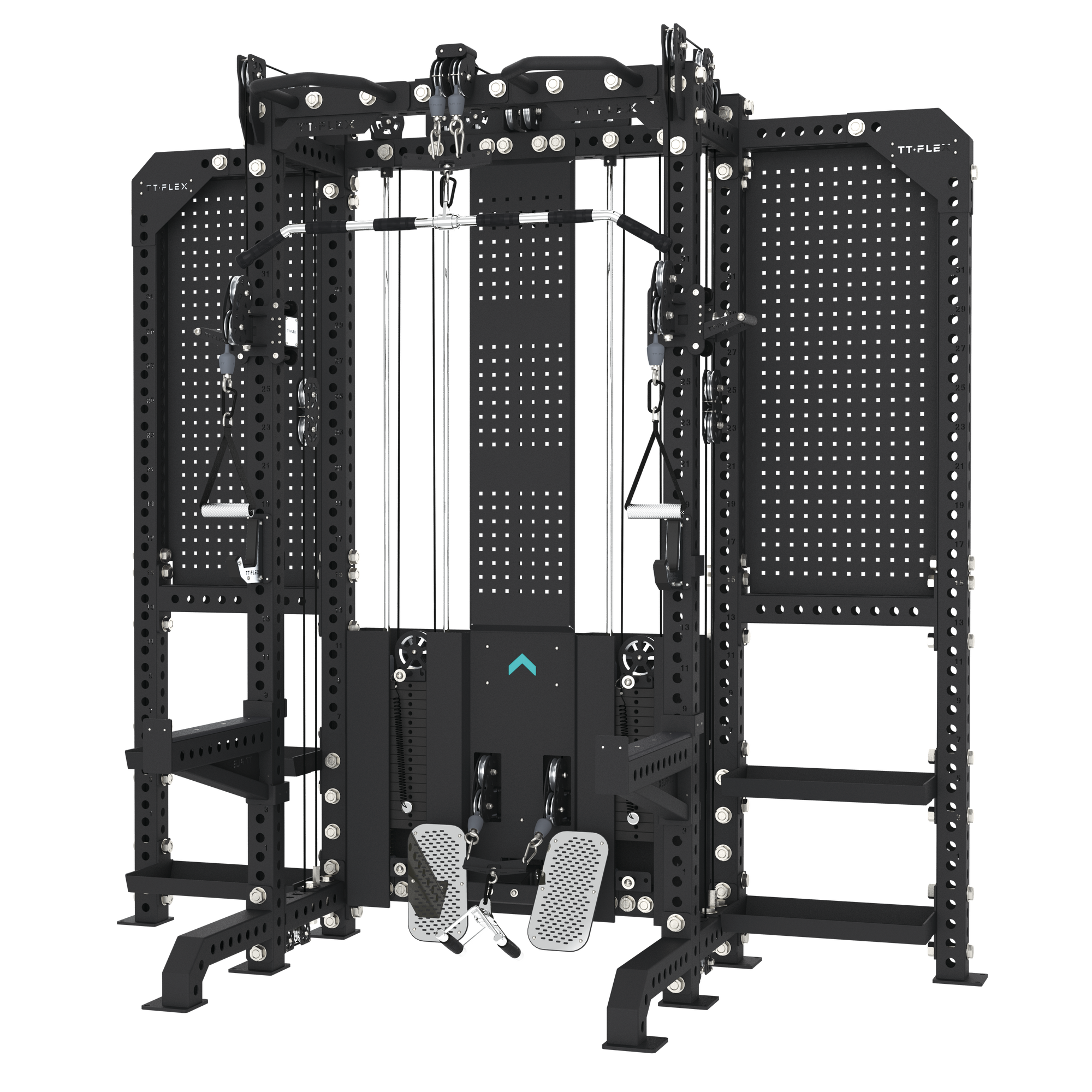

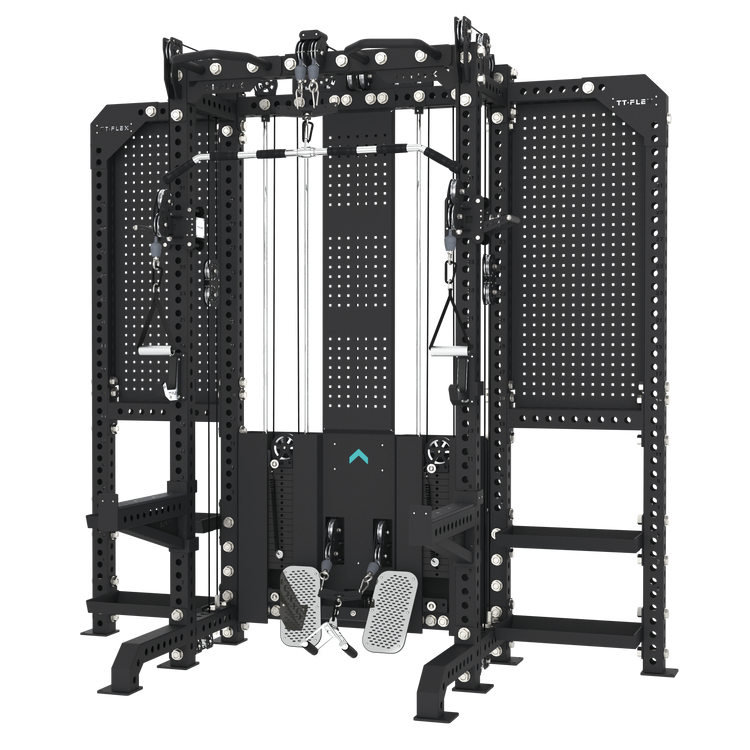

More than just a trainer, it's your complete gym solution. The storage panels let your hang accessories like handles, straps, and bars right where you need them, while integrated plate pegs keep weights tidy and secure. No more scattered equipment or wasted space - this set combines heavy-duty performance with smart storage, turning your gym into a clean, efficient training zone.
| Specifications |
Details |
| Upright Size |
75x75mm heavy-duty square uprights |
| Thickness |
3.0mm raw steel wall thickness (3.3-3.5mm after powder coating) |
| Material |
Aviation-grade Q235 carbon steel |
| Finish |
Default Color: Matte Black. Custom colors are available.
|
| Dimensions |
2480x1095x2388mm
|
| Product Weight |
470kg
|
| Weight Stack |
70 kg per side. Customizable. Maximum load up to 120 kg per side.
|
This robust construction ensures exceptional stability under heavy loads, eliminating frame flex during squats, bench presses, and overhead lifts.
Pulley System
• Pulley Ratio:
- the upper and lower pulley system adopts a 1:1 ratio;
- the left and right functional sliding pulleys adopt a 2:1 ratio.
• Pulley Wheels: Aluminum Pulley
Concentric rotation for quieter operation, 115mm diameter pulley for smoother, longer-lasting performance, Integrated adjustable pull pin holes with added resistance band hooks, Modular head assembly connection for more options and no rope twisting
• Cables: Nylon Rope; Material: PA16, Diameter: 4mm; 7 Strands, 18 Threads; Higher Plasticity, Non-Stiff
• Optical Axis Solid and wear-resistant, extending equipment lifespan, ultra-low friction transmission for smoother movement, withstands high load impacts to ensure structural safety
• Guide Rod: Solid guide rod with absolute rigidity for enhanced safety and precision
CNC precision-machined for perfect smoothness and increased durability
• Cable Attachments: Compatible with all standard accessories, including lat pulldown bars, tricep ropes, row handles, and ankle cuffs.
• High-Steel Weight Plates: Standard configuration: 70KG per side (customizable)
12-sided CNC chamfered edges for a premium finish
Dimensional tolerance: ±2mm; weight tolerance: ±1%
Standard Accessories Included with the Rack
◦ Multi-grip pull-up bar
◦ Adjustable safety spotter arms
◦ Heavy-duty J-hooks
◦ Lat pulldown & low row handles
◦ Pegboard
◦ Stainless Steel Footplate
◦ Weight Plate Guard
◦ 2kg Free Weight Block
◦ Aluminum Handle
Customization Options
DM : https://wa.me/8618851014104
The Premium Series is fully customizable to meet your unique needs:
• Color Matching
• Logo Branding
• Accessory Packages
• Height Modifications: Custom upright heights available upon request
Training Capabilities
The Premium Series supports a comprehensive full-body workout, including but not limited to:
• Compound Lifts: Back squats, front squats, bench press, overhead press, deadlifts, and pull-ups
• Cable Exercises: Lat pulldowns, seated cable rows, chest flys, tricep pushdowns, face pulls, and cable crossovers
• Functional Training: Landmine presses, jammer arm presses, core rotations, and hip thrusts
• Accessory Work: Bicep curls, tricep extensions, lateral raises, and more
Installation & Support
• Assembly: The unit comes with detailed, step-by-step installation manuals, hardware bags, and video guides.
• After-Sales Service: We provide a 5-year warranty.
• Shipping: Global door-to-door delivery is available. Contact us with your address and postal code for a customized shipping quote
