Owerview

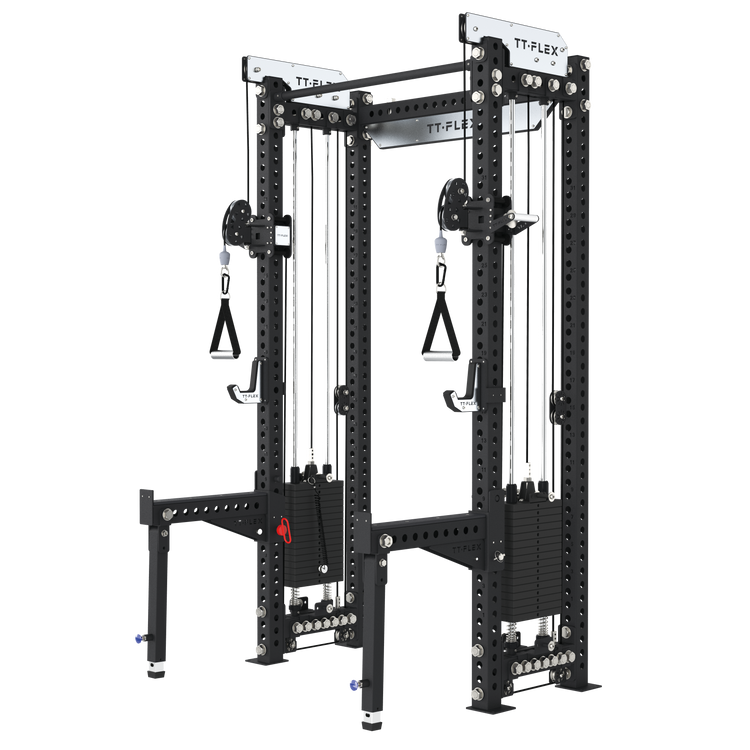

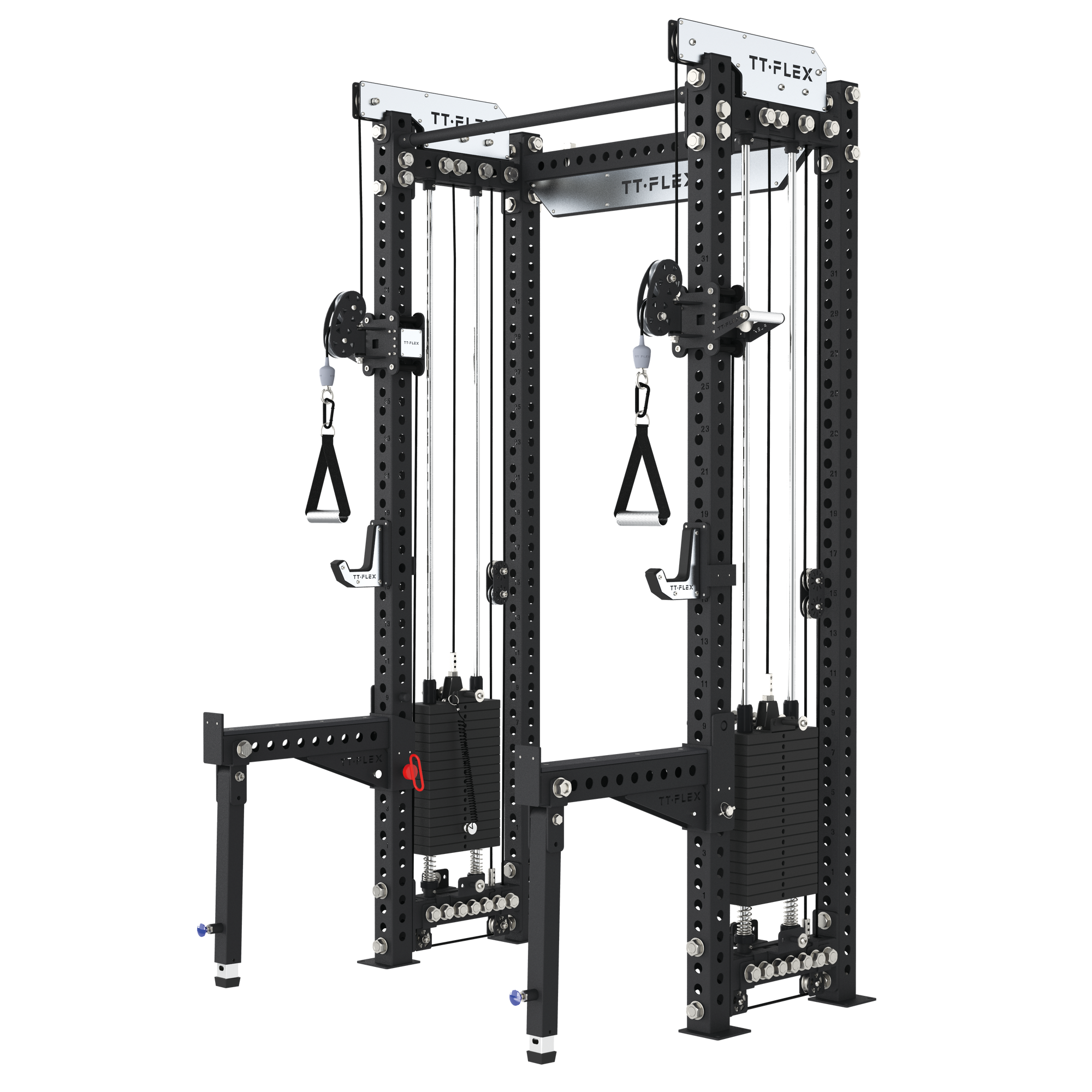

The Standart Ultra Narrow 2-in-1 home gym integrates ultra narrow power rack & pulleys in one compact structure. Designed for home gym, it delivers full-body strength training in a space-saving footprint, ideal for squat, bench press, deadlift, pull-up, chest fly workouts.
| Specifications |
Details |
| Upright Size |
75x75mm heavy-duty square uprights |
| Thickness |
3.0mm raw steel wall thickness (3.3-3.5mm after powder coating) |
| Material |
Aviation-grade Q235 carbon steel |
| Finish |
Default Color: Matte Black. Custom colors are available.
|
| Dimensions |
1290x620x2394mm
|
| Product Weight |
336kg
|
| Weight Stack |
80 kg per side. Customizable. Maximum load up to 120 kg per side.
|
This robust construction ensures exceptional stability under heavy loads, eliminating frame flex during squats, bench presses, and overhead lifts.
Pulley System
• Pulley Ratio:
- the upper and lower pulley system adopts a 1:1 ratio;
- the left and right functional sliding pulleys adopt a 2:1 ratio.
• Pulley Wheels: Aluminum Pulley
Concentric rotation for quieter operation, 115mm diameter pulley for smoother, longer-lasting performance, Integrated adjustable pull pin holes with added resistance band hooks, Modular head assembly connection for more options and no rope twisting
• Cables: Nylon Rope; Material: PA16, Diameter: 4mm; 7 Strands, 18 Threads; Higher Plasticity, Non-Stiff
• Optical Axis Solid and wear-resistant, extending equipment lifespan, ultra-low friction transmission for smoother movement, withstands high load impacts to ensure structural safety
• Guide Rod: Solid guide rod with absolute rigidity for enhanced safety and precision
CNC precision-machined for perfect smoothness and increased durability
• Cable Attachments: Compatible with all standard accessories, including lat pulldown bars, tricep ropes, row handles, and ankle cuffs.
• High-Steel Weight Plates: Standard configuration: 70KG per side (customizable)
12-sided CNC chamfered edges for a premium finish
Dimensional tolerance: ±2mm; weight tolerance: ±1%
Standard Accessories Included with the Rack
◦ Foldable safety bar
◦ Heavy-duty J-hooks
◦ Aluminum Handle
Customization Options
DM : https://wa.me/8618851014104
The Standart Series is fully customizable to meet your unique needs:
• Color Matching
• Logo Branding
• Accessory Packages
• Height Modifications: Custom upright heights available upon request
Training Capabilities
The Standart Series supports a comprehensive full-body workout, including but not limited to:
• Compound Lifts: Back squats, front squats, bench press, overhead press, deadlifts, and pull-ups
• Cable Exercises: Lat pulldowns, seated cable rows, chest flys, tricep pushdowns, face pulls, and cable crossovers
• Functional Training: Landmine presses, jammer arm presses, core rotations, and hip thrusts
• Accessory Work: Bicep curls, tricep extensions, lateral raises, and more
Installation & Support
• Assembly: The unit comes with detailed, step-by-step installation manuals, hardware bags, and video guides.
• After-Sales Service: We provide a 5-year warranty.
• Shipping: Global door-to-door delivery is available. Contact us with your address and postal code for a customized shipping quote
https://wa.me/8618851014104
